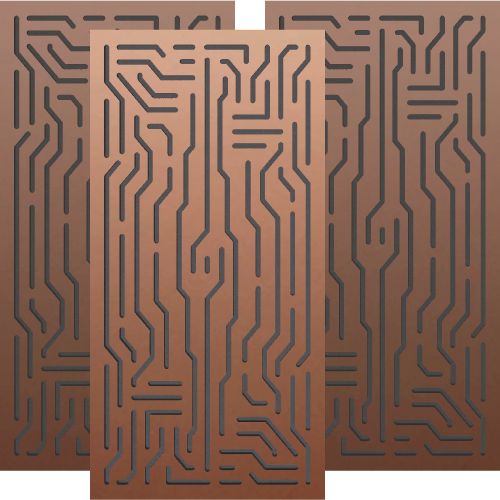

Artnovion Azteka Doble W - Bass Trap - Wall - FG | (L05) Silver
With a peak absorption from 80 Hz to 120 Hz, the Wall Bass Trap offers an enriched acoustic experience, directly attenuating standing waves. The various front designs available for the Wall Bass Trap allow you to create artistic patterns when mounted on the walls of your home studio or recording room, completely indistinguishable from the Artnovion absorber range.
The Wall Bass Trap - 595 x 1190 - equivalent to 2 standard panels, is equipped with a weighted pistonic membrane enclosing a volume with a high performance acoustic core. This design allows for a precisely tuned, high performance absorption. Bringing you the maximum performance in as least space as possible.
Dimensions: 595x1190x56mm
Weight: 8.5Kg
Box
Units per box: 2
Dimensions: 1235x200x665mm
Volume: 0.164m3
Weight: 19.22Kg
Purpose
- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay
Recommended for
- Vertical Wall
- Small Room Acoustics
- Acoustic pressure zones
Type:
Pistonic Diaphragmatic Absorber
Absorption range: 80 Hz to 120 Hz
Peak Absorption Frequency: 90 Hz
Material:
- Natural Wood veener | Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
This panels can only be installed on vertical wall corners. Not for ceiling use.
Dimensions:
FG - LW | 595x1190x56mm
FG - NW | 595x1190x56mm

Available Finishes:
(FG - LW) Lacquered Wood Finishes
