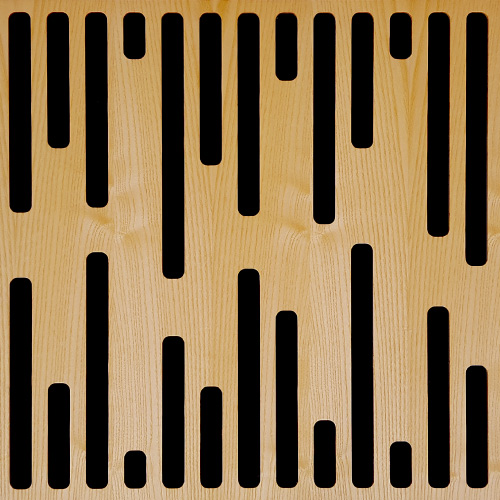

Artnovion Orion W
Orion W - Absorber
A distinct acoustic response.
Features
Type:
Acoustic Absorber
Absorption range:
315 Hz to 3150 Hz
Acoustic Class:
C | (αw) = 0,75
Purpose
- Sweet spot sound field distribution
- RT reduction
Orion brings the distinct design of our flagship Logan diffuser to new horizons. An array of Orion absorbers create areas with a distinct acoustic response, each calibrated to work at a certain frequency range.
Using these Helmholtz-style absorption techniques boosts mid-low and mid rage absorption, whilst the open areas of the panel are enough to guarantee high-frequency absorption. Orion is a great technical product, designed for the studio world, where each surface is critical - making sure that you get the best out of your studio. Orion's performance begins at 315 Hz and offers effective and even absorption up to 3150 Hz.
- Orion is an impressive combination of unique Artnovion acoustic design with high performance acoustical cores.
- Orion absorber panels can be effortlessly installed on walls or ceilings.


Unique Artnovion acoustic design with high performance acoustical cores.
Recommended for
- Control Room
- Recording Room
- Home Studio
- Broadcast Studio
- Vocal Booth
- Drum Room
FG | Furniture Grade
Materials:
- Natural wood | Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam (Rear panels’ air cavities)
Dimensions:
Orion - Absorber
- 595x595x58mm
- Equipped with four M6 Screw Thread receiver
Orion Doble - Absorber
- 595x1190x58mm
- Equipped with six M6 Screw Thread receiver

Orion W - Absorber
OVERVIEW
Purpose
- Sweet spot sound field distribution
- RT reduction
Recommended for
- Control Room
- Recording Room
- Home Studio
- Broadcast Studio
- Vocal Booth
- Drum Room
Type:
Acoustic Absorber
Absorption range: 315 Hz to 3150 Hz
Acoustic Class: C | (αw) = 0,75
Available fire rate:
FG | Furniture Grade
Materials:
- Natural wood | Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
Four M6 Screw Thread receiver included on each panel.
Disclaimer:
When using FixArt Tube on the ceiling, it is obligatory to use the FixArt Lock security device. This system guarantees a safe and precise installation.
Dimensions:
FG - LW | 595x595x58mm
FG - NW | 595x595x58mm
